PENDAHULUAN:

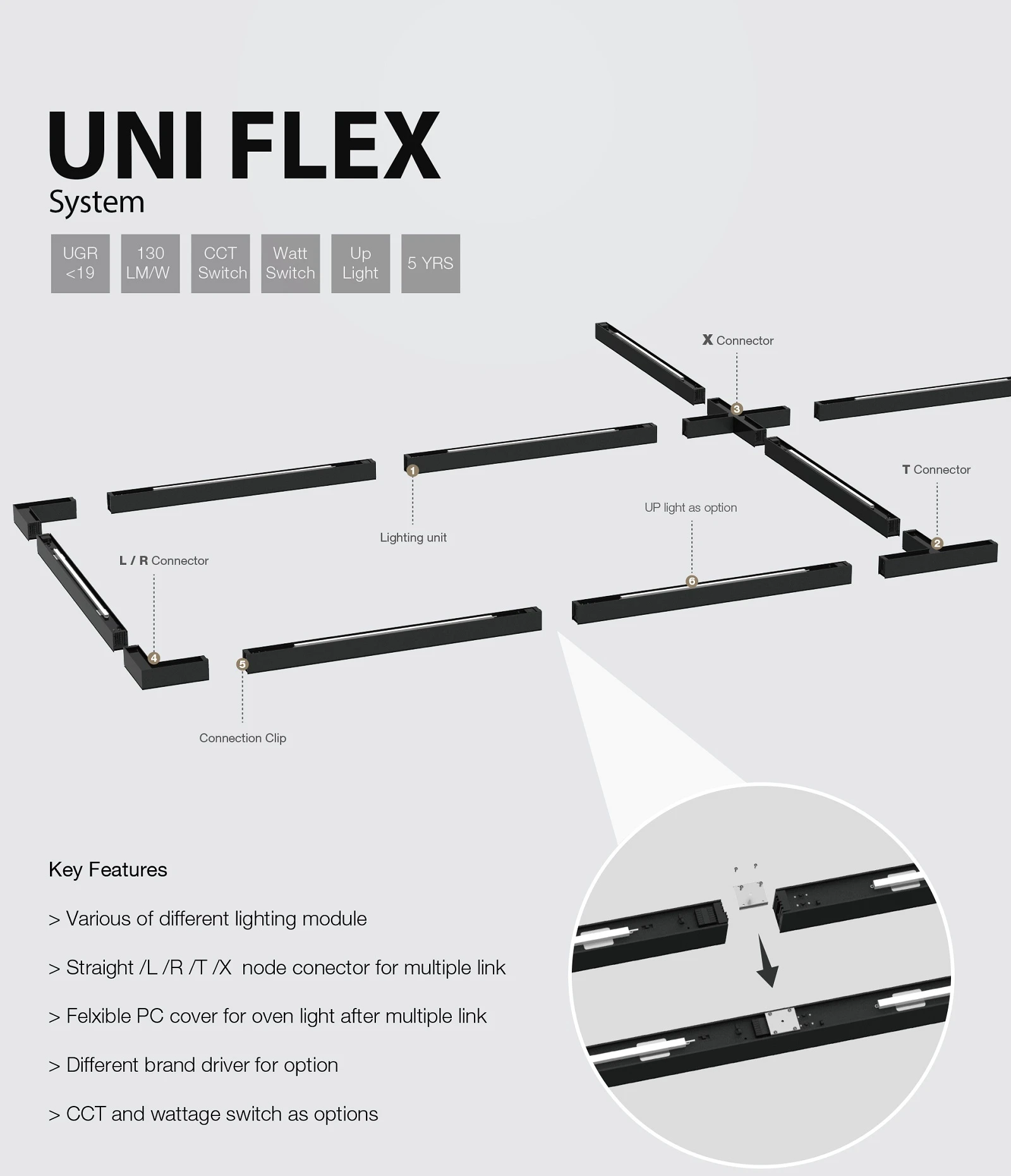

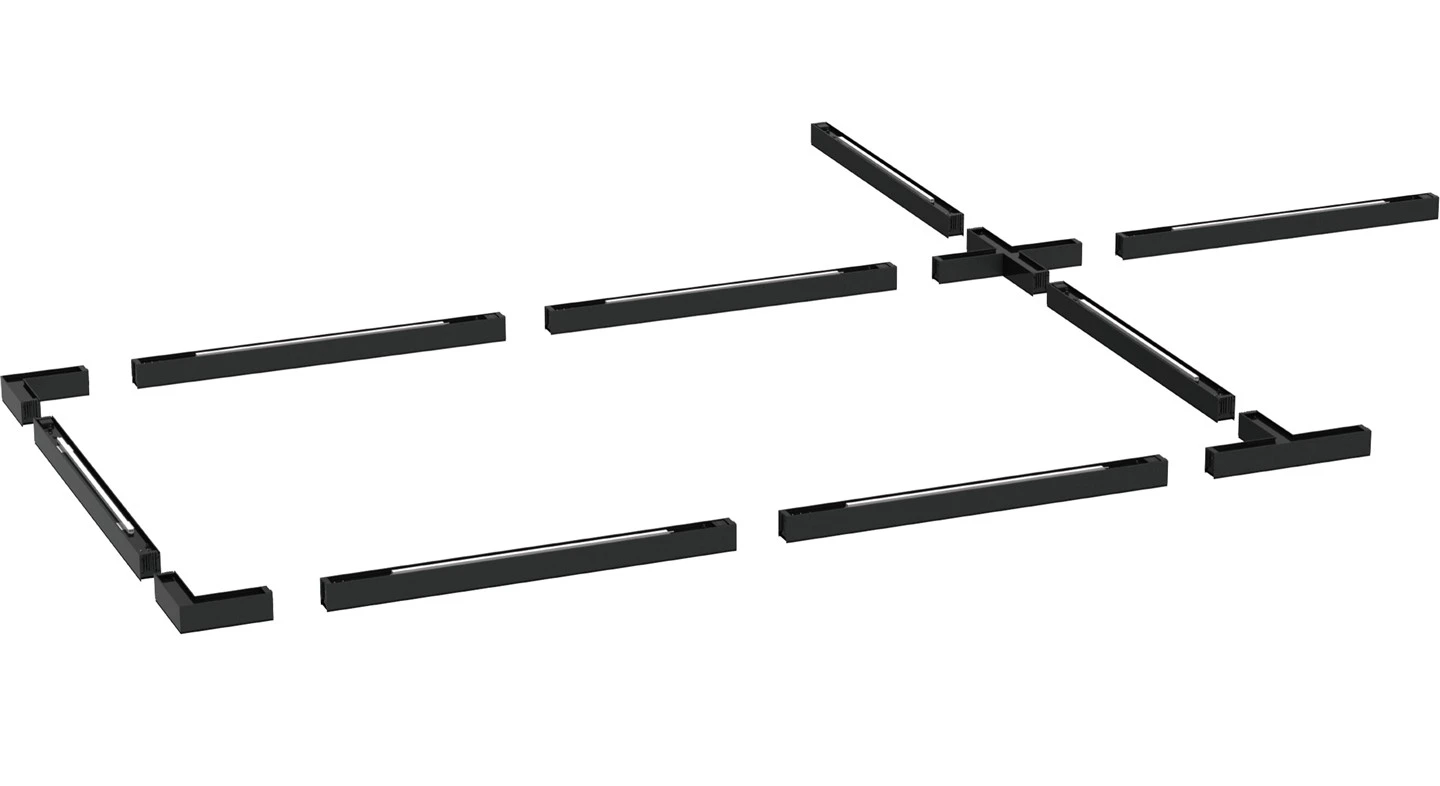

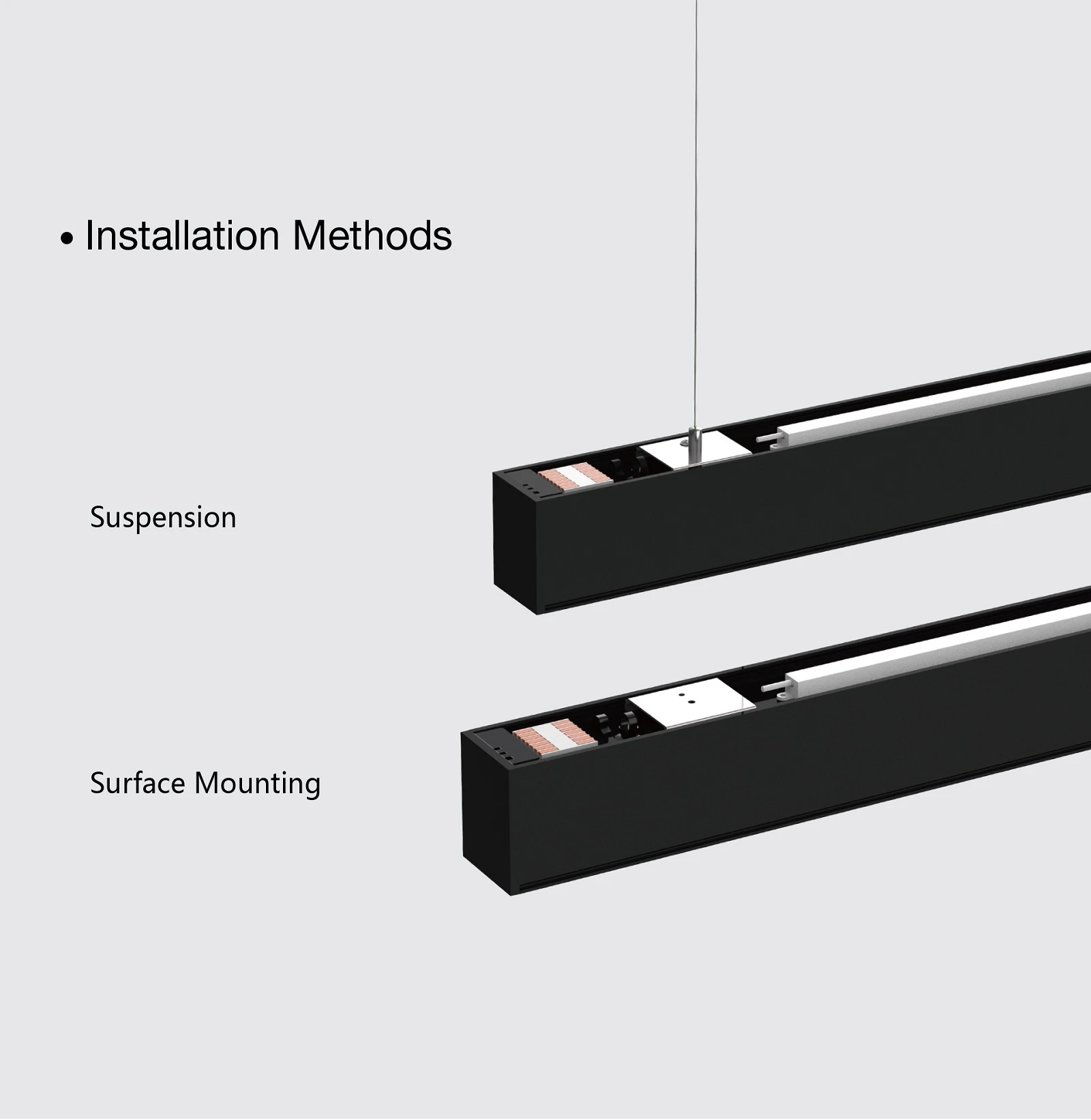

UNI Flex tiasa recessed cahaya linier, ditunda luminaires linier, permukaan dipasang lampu linier, cahaya lagu, sarta ogé mangrupa connectable dirancang cahaya LED. Cai mibanda pilihan cahaya béda, pamasangan sarta sambungan béda jeung euweuh wates dina panjang sambungan maksimum. Rupa-rupa fitur didadarkeun di luhur nyieun UNI Flex linier pisan modern jeung loba dipaké dina cahaya kantor, cahaya komérsial, cahaya ritel, jsb Sabaraha jauh kedah jarak antara lampu linier? Anjeun kedah tingali UNI Flex kami, anu henteu aya wates sambungan.
|
Diffuser |
UGR |
Kode pesenan |
Dipeunteun Power |
LM/W |
Lumén |
SDCM/Ra |
Kelas IP |
Dimensi produk |
Fungsi |
|

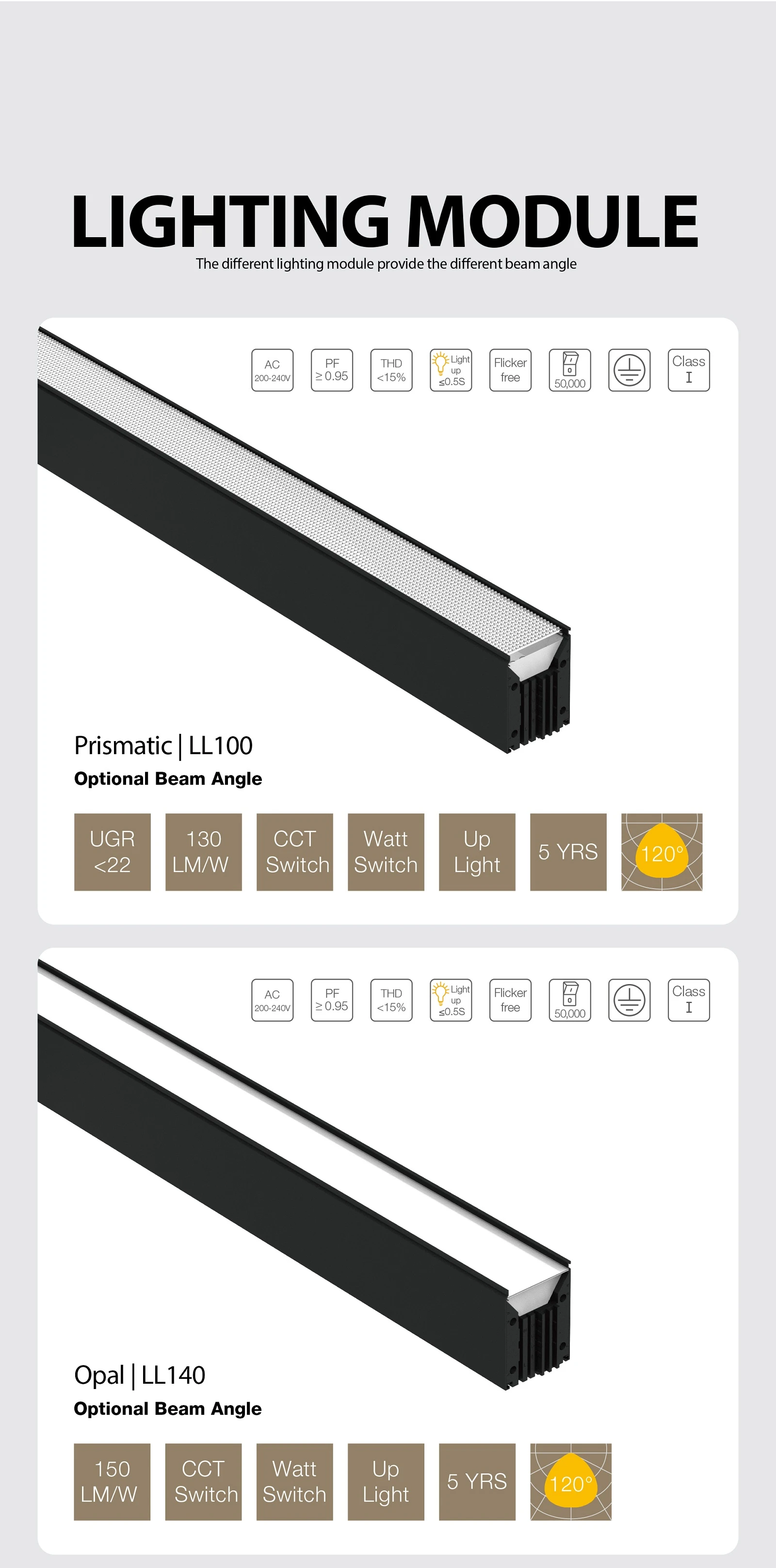

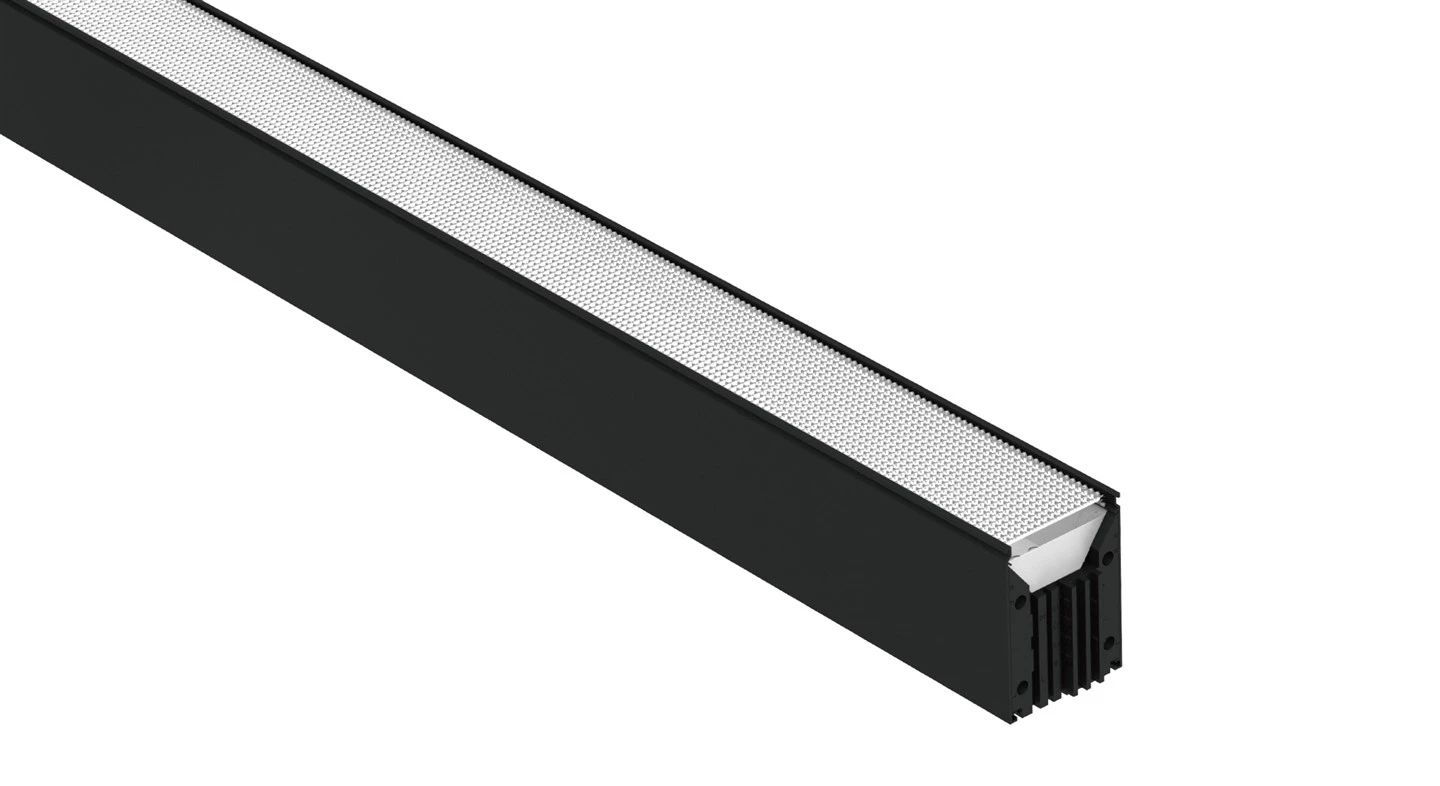

Prismatik |
UGR |
LL400-04B-AT1-40F01 |
20-40W |
Tipe.130 |
Typ.2600-5200 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
ON -Pareum |
|
Prismatik |
UGR |
LL400-04B-AT1-40V01 |
20-40W |
Tipe.130 |
Typ.2600-5200 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
PWM (Pikeun MS) |
|
Prismatik |
UGR |
LL400-04B-AT1-40D01 |
20-40W |
Tipe.130 |
Typ.2600-5200 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
DALI |
|
Prismatik |
UGR |
LL400-05B-AT1-50F01 |
30-50W |
Tipe.130 |
Typ.3900-6500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
ON -Pareum |
|
Prismatik |
UGR |
LL400-05B-AT1-50V01 |
30-50W |
Tipe.130 |
Typ.3900-6500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
PWM (Pikeun MS) |
|
Prismatik |
UGR |
LL400-05B-AT1-50D01 |
30-50W |
Tipe.130 |
Typ.3900-6500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
DALI |
|
Prismatik |
UGR |
LL400-06B-AT1-60F01 |
40-60W |
Tipe.130 |
Typ.5200-7800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
ON -Pareum |
|
Prismatik |
UGR |
LL400-06B-AT1-60V01 |
40-60W |
Tipe.130 |
Typ.5200-7800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
PWM (Pikeun MS) |
|
Prismatik |
UGR |
LL400-06B-AT1-60D01 |
40-60W |
Tipe.130 |
Typ.5200-7800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
DALI |
|

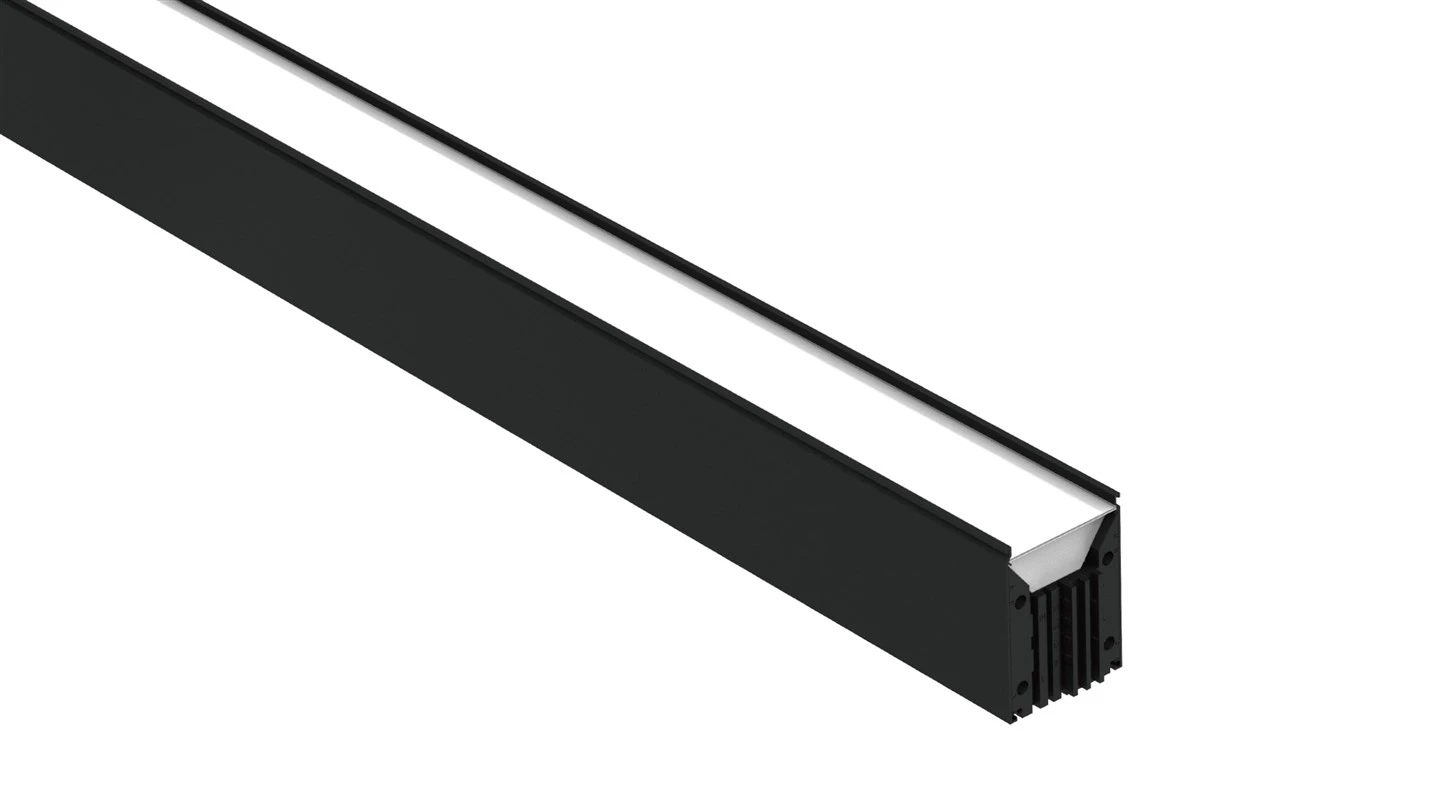

Opal |
/ |
LL410-04B-AT1-40F01 |
20-40W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
ON -Pareum |
|
Opal |
/ |
LL410-04B-AT1-40V01 |
20-40W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
PWM (Pikeun MS) |
|
Opal |
/ |
LL410-04B-AT1-40D01 |
20-40W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
DALI |
|
Opal |
/ |
LL410-05B-AT1-50F01 |
30-50W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
ON -Pareum |
|
Opal |
/ |
LL410-05B-AT1-50V01 |
30-50W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
PWM (Pikeun MS) |
|
Opal |
/ |
LL110-05B-DT1-40D01 |
30-50W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
DALI |
|
Opal |
/ |
LL410-05B-AT1-50D01 |
40-60W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
ON -Pareum |
|
Opal |
/ |
LL110-05B-DT1-40D01 |
40-60W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
PWM (Pikeun MS) |
|
Opal |
/ |
LL110-05B-DT1-40V01 |
40-60W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
DALI |
|

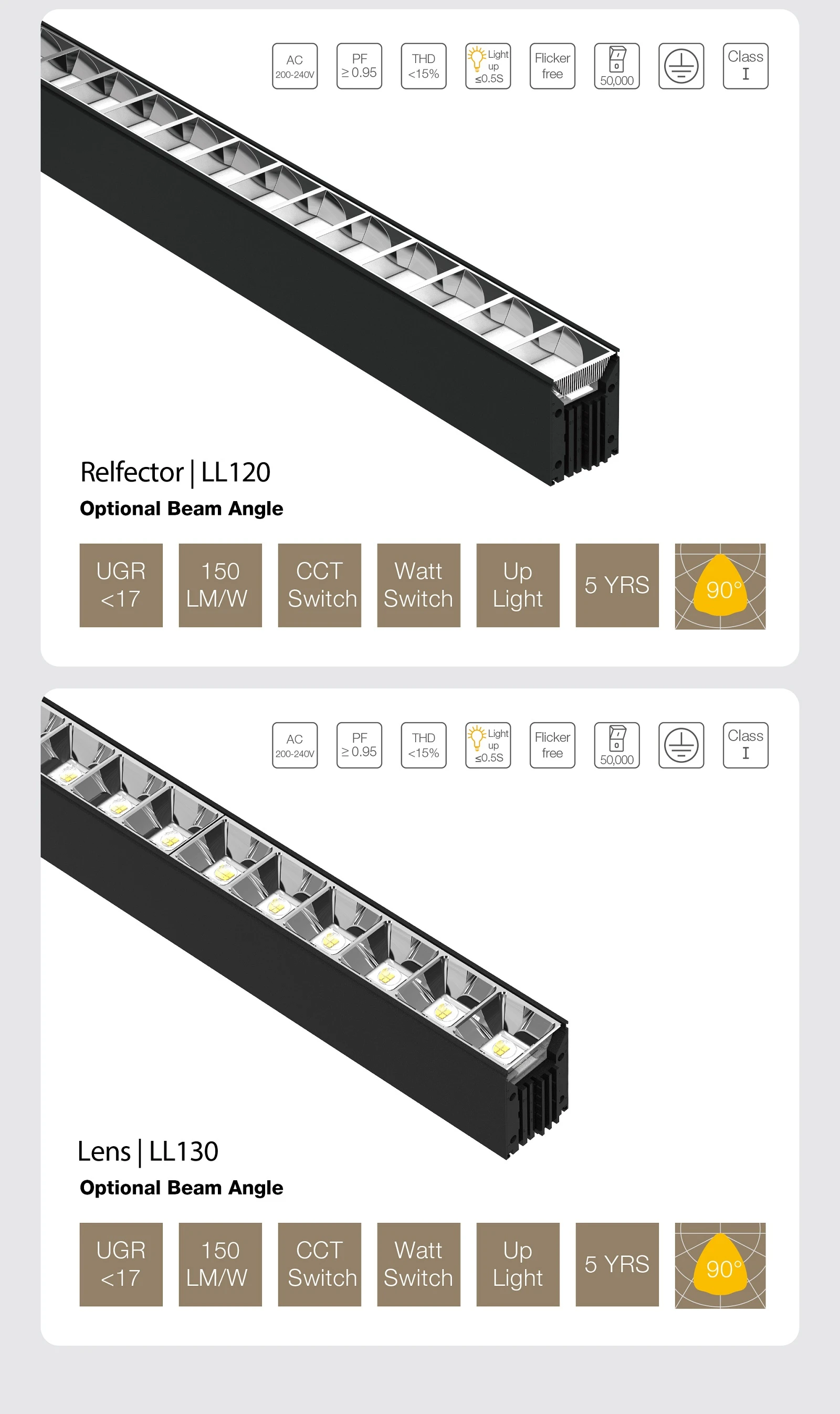

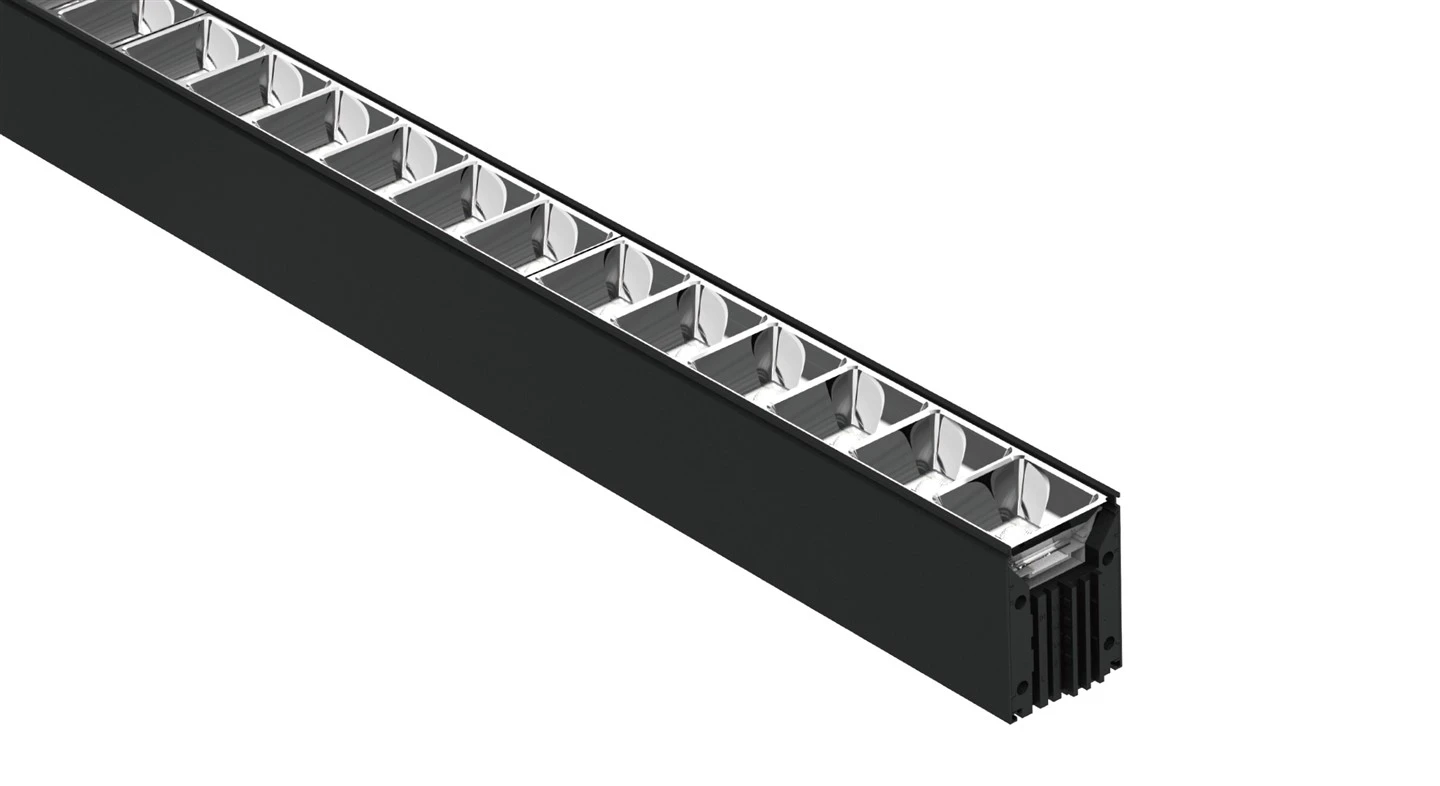

Reflektor |
UGR |
LL420-04B-RT1-40F01 |
20-40W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
ON -Pareum |
|
Reflektor |
UGR |
LL420-04B-RT1-40V01 |
20-40W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
PWM (Pikeun MS) |
|
Reflektor |
UGR |
LL420-04B-RT1-40D01 |
20-40W |
Tipe.150 |
Tip.3000-6000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
DALI |
|
Reflektor |
UGR |
LL420-05B-RT1-50F01 |
30-50W |
Tipe.150 |
Typ.4500-7500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
ON -Pareum |
|
Reflektor |
UGR |
LL420-05B-RT1-50V01 |
30-50W |
Tipe.150 |
Typ.4500-7500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
PWM (Pikeun MS) |
|
Reflektor |
UGR |
LL420-05B-RT1-50D01 |
30-50W |
Tipe.150 |
Typ.4500-7500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
DALI |
|
Reflektor |
UGR |
LL420-06B-RT1-60F01 |
40-60W |
Tipe.150 |
Tip.6000-9000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
ON -Pareum |
|
Reflektor |
UGR |
LL420-06B-RT1-60V01 |
40-60W |
Tipe.150 |
Tip.6000-9000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
PWM (Pikeun MS) |
|
Reflektor |
UGR |
LL420-06B-RT1-60D01 |
40-60W |
Tipe.150 |
Tip.6000-9000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
DALI |
|
Lensa |
UGR |
LL430-04B-CT1-40F01 |
20-40W |
Tipe.160 |
Typ.3200-6400 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
ON -Pareum |
|
Lensa |
UGR |
LL430-04B-CT1-40V01 |
20-40W |
Tipe.160 |
Typ.3200-6400 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
PWM (Pikeun MS) |
|
Lensa |
UGR |
LL430-04B-CT1-40D01 |
20-40W |
Tipe.160 |
Typ.3200-6400 |
SDCM<3,<5/Ra80,90 |
IP20 |
L 1150 x W 60 x H 80 |
DALI |
|
Lensa |
UGR |
LL430-05B-CT1-50F01 |
30-50W |
Tipe.160 |
Typ.4800-8000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
ON -Pareum |
|
Lensa |
UGR |
LL430-05B-CT1-50V01 |
30-50W |
Tipe.160 |
Typ.4800-8000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
PWM (Pikeun MS) |
|
Lensa |
UGR |
LL430-05B-CT1-50D01 |
30-50W |
Tipe.160 |
Typ.4800-8000 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1437 x W60 x H80 |
DALI |
|
Lensa |
UGR |
LL430-06B-CT1-60F01 |
40-60W |
Tipe.160 |
Typ.6400-9600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
ON -Pareum |
|
Lensa |
UGR |
LL430-06B-CT1-60V01 |
40-60W |
Tipe.160 |
Typ.6400-9600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
PWM (Pikeun MS) |
|
Lensa |
UGR |
LL430-06B-CT1-60D01 |
40-60W |
Tipe.160 |
Typ.6400-9600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1723 x W60 x H80 |
DALI |
