PENDAHULUAN:

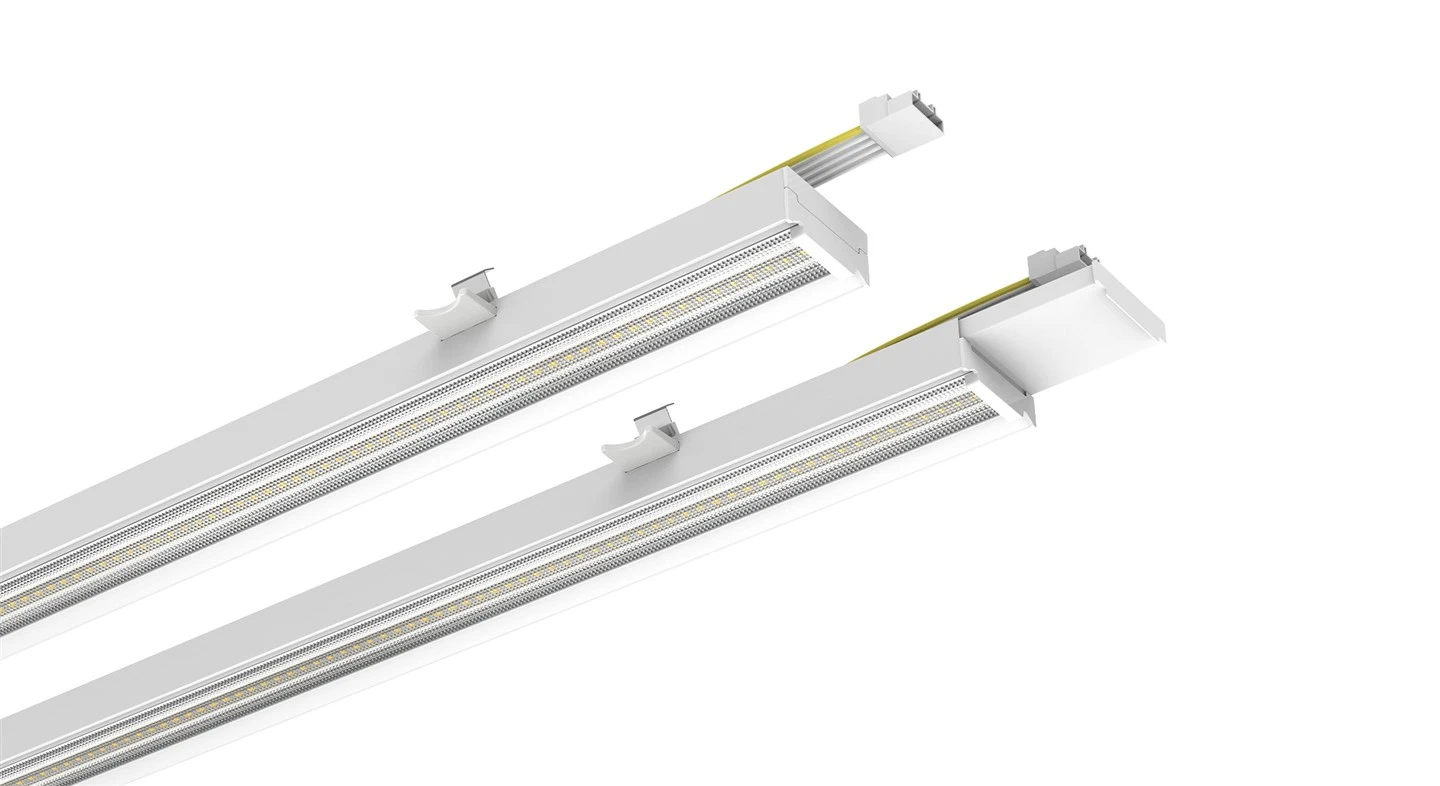

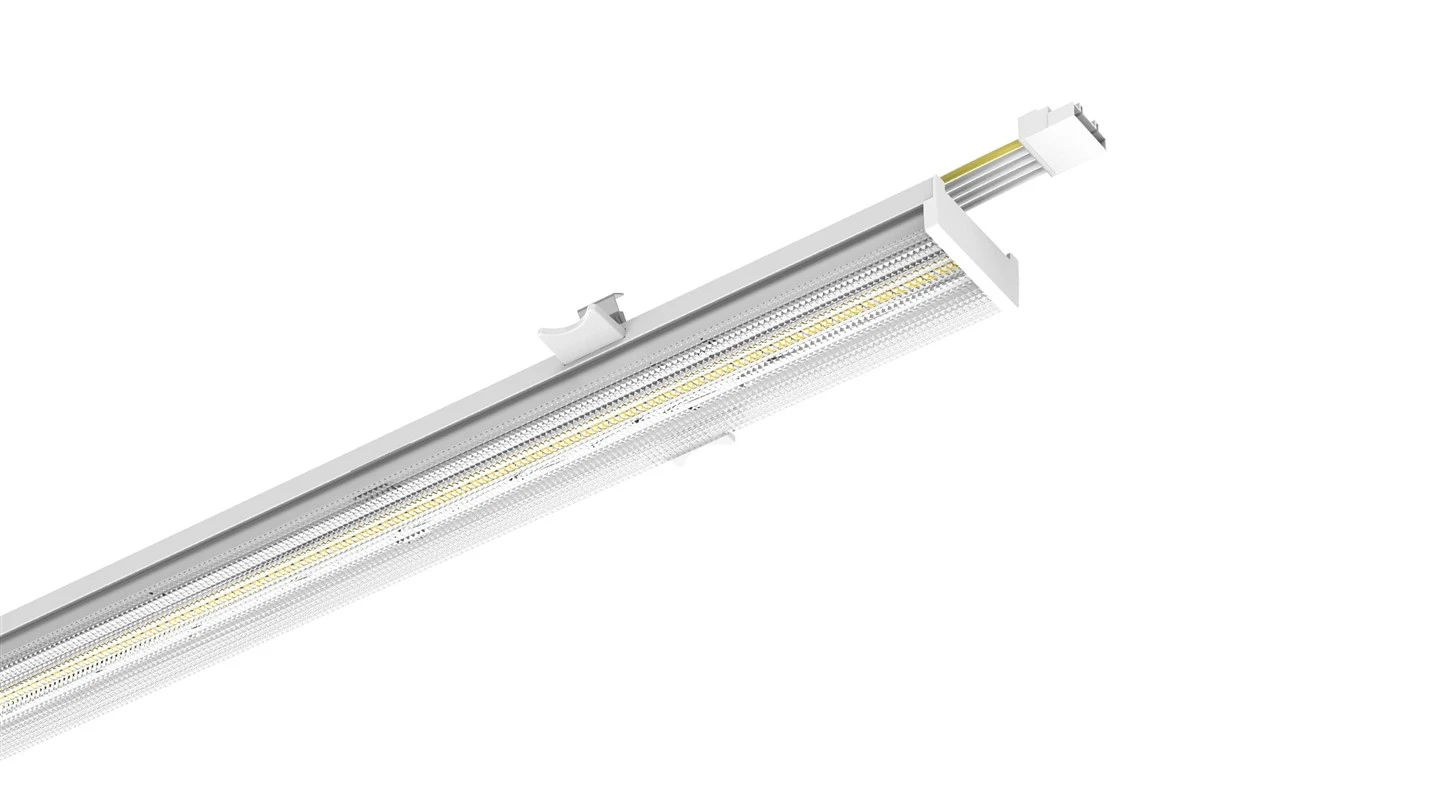

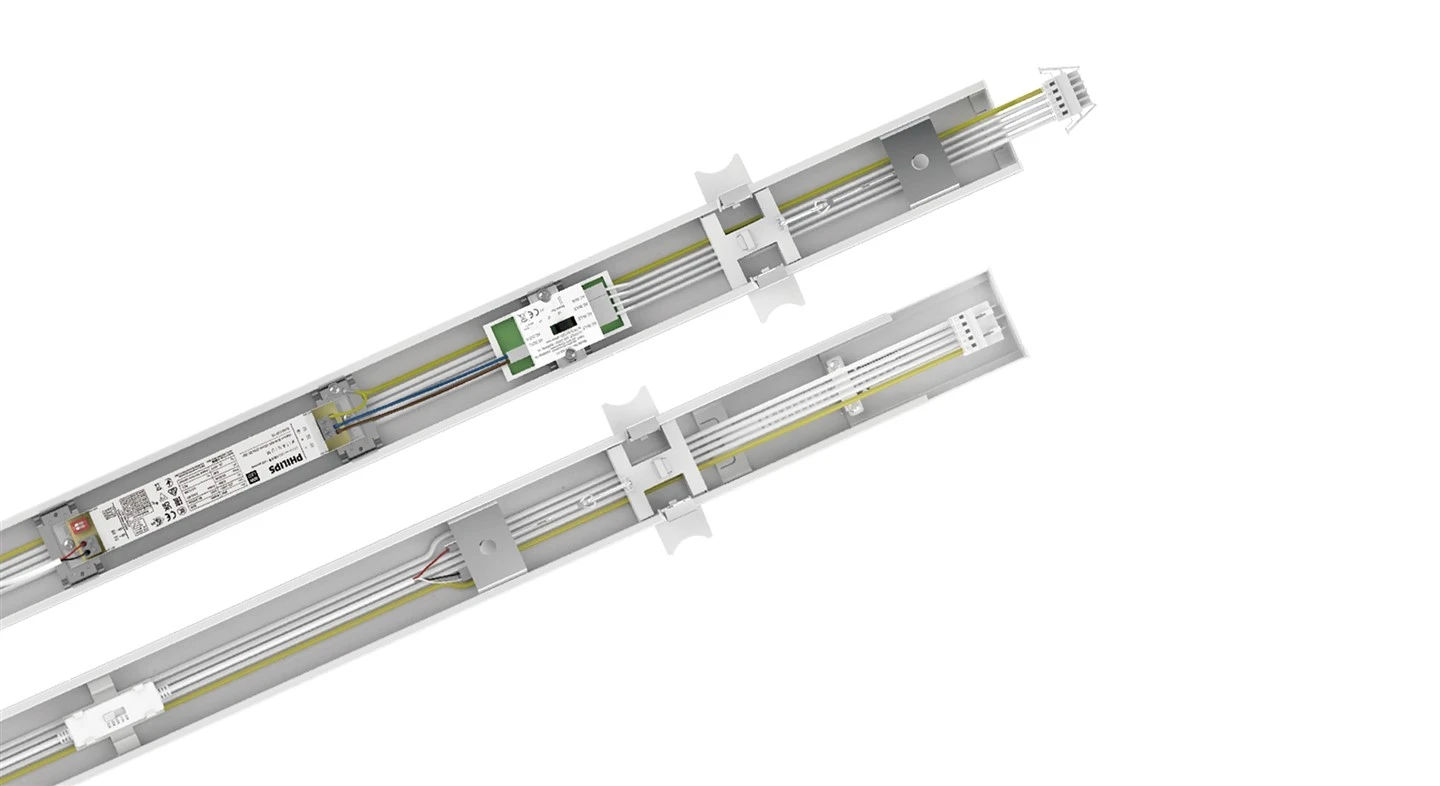

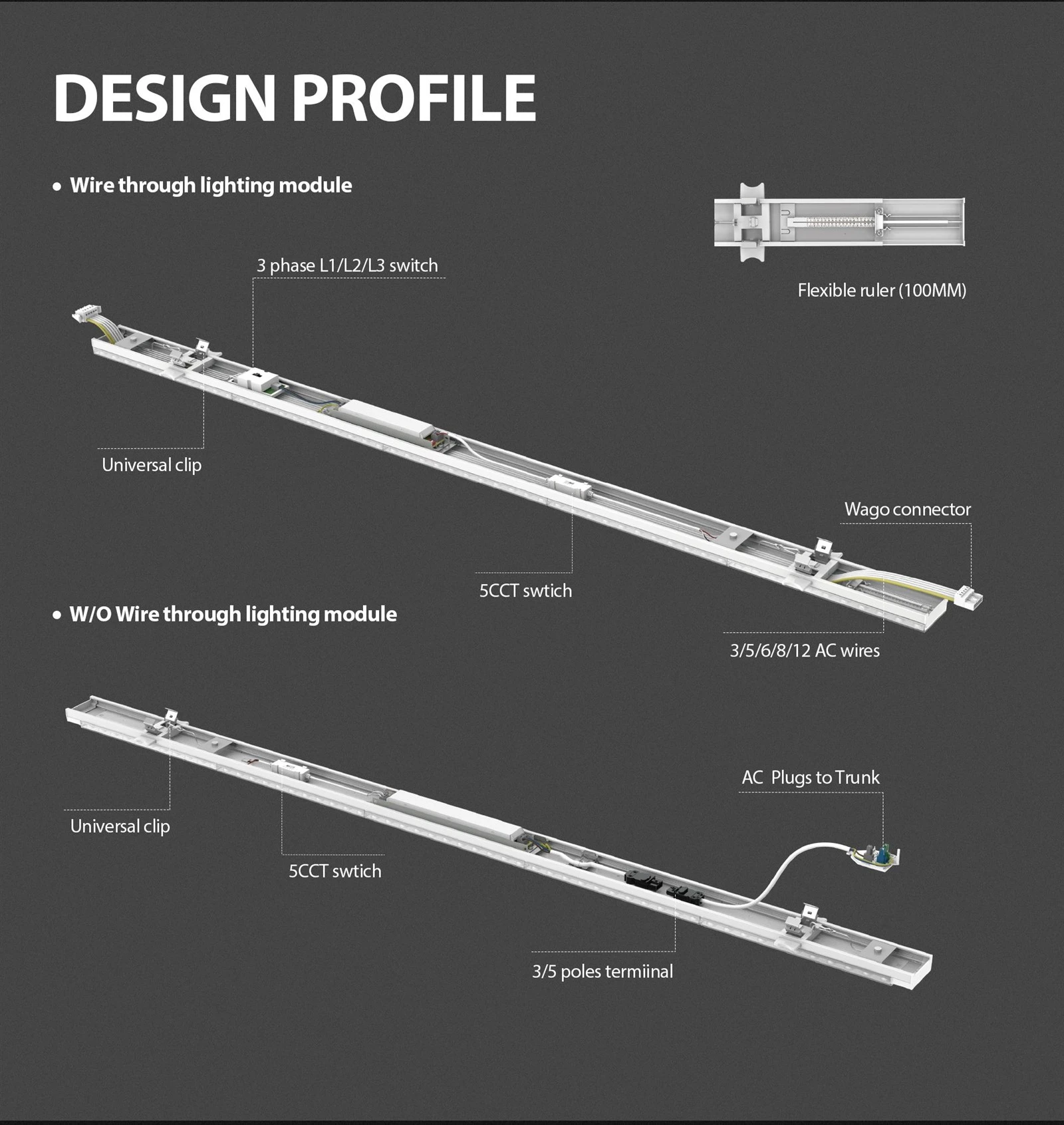

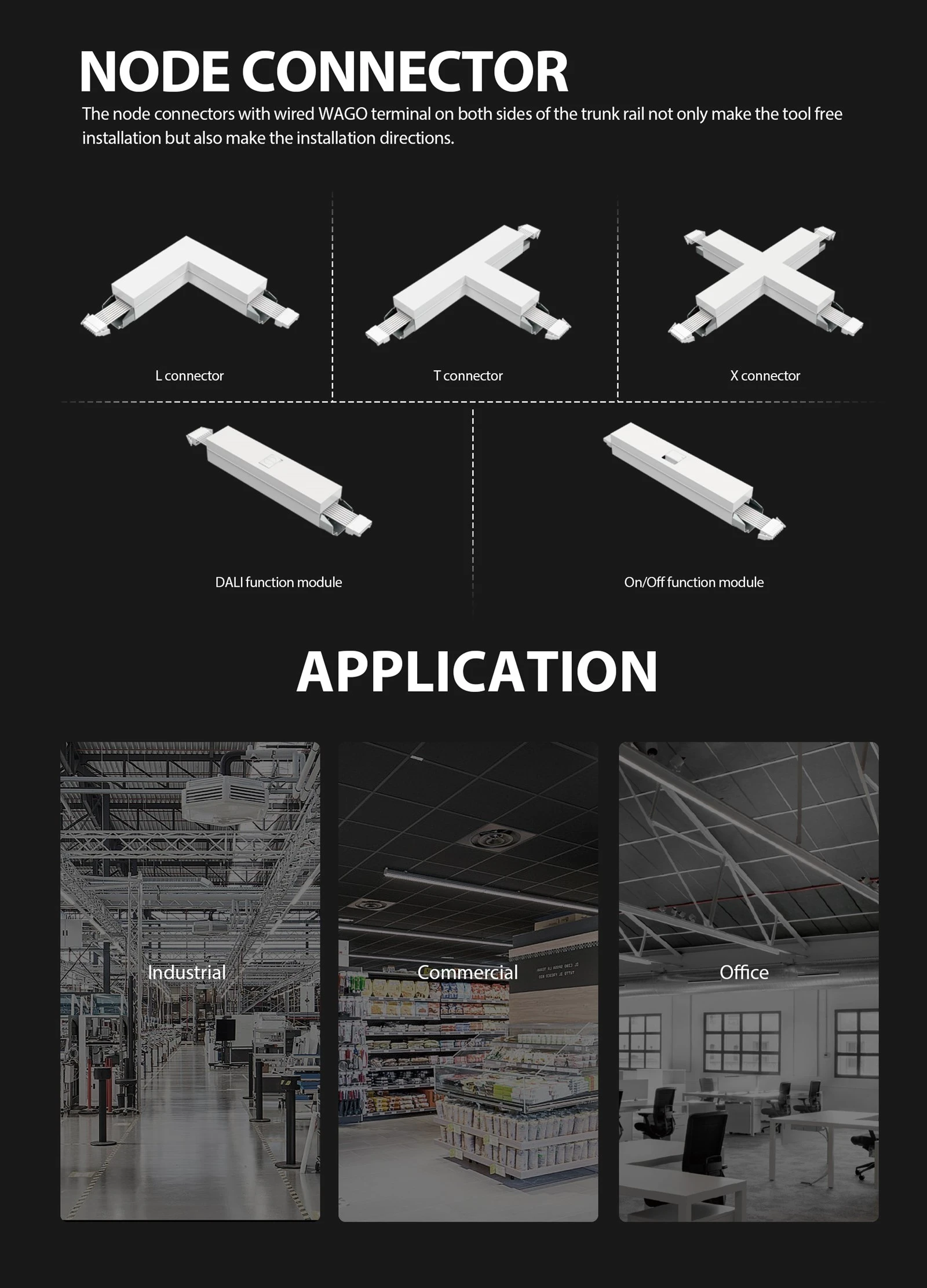

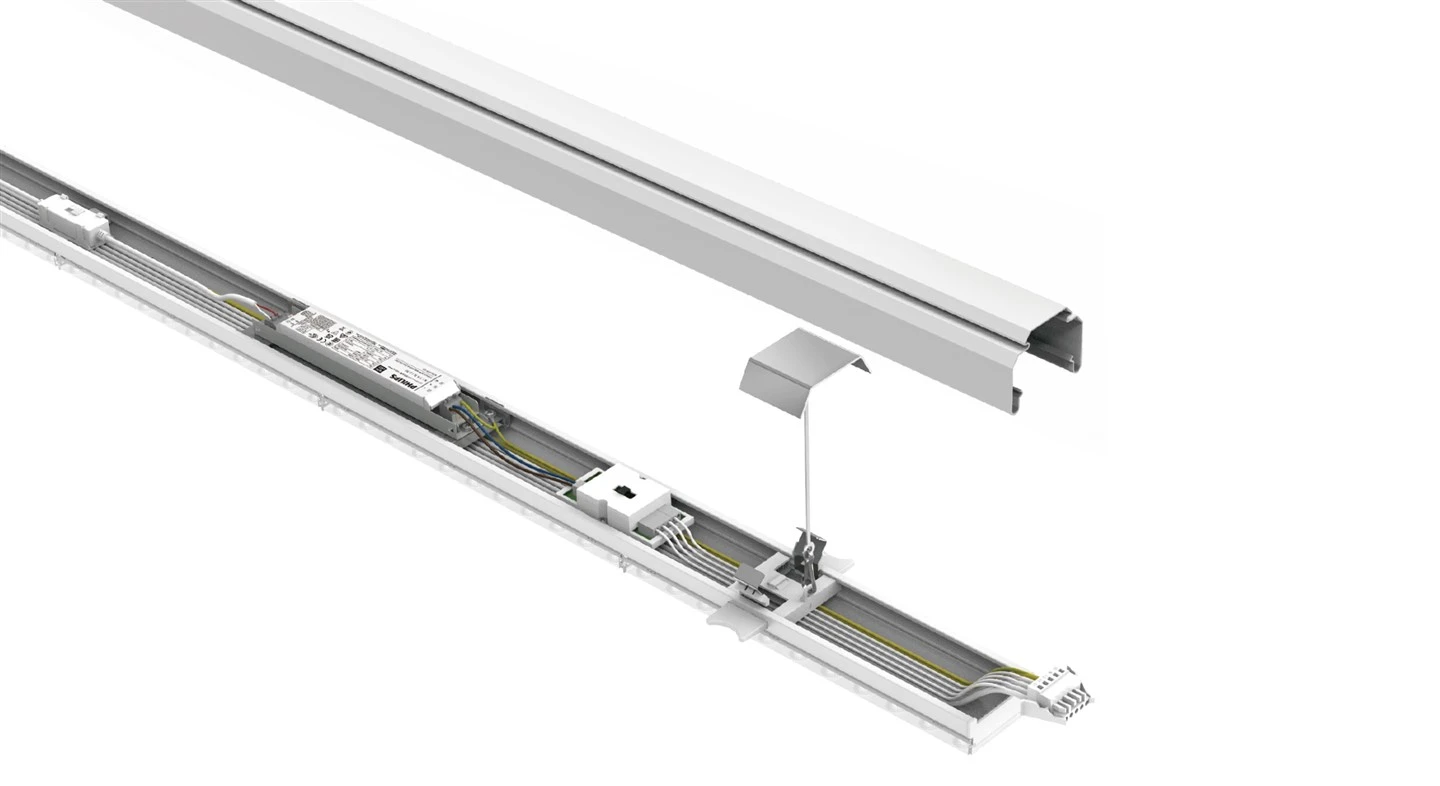

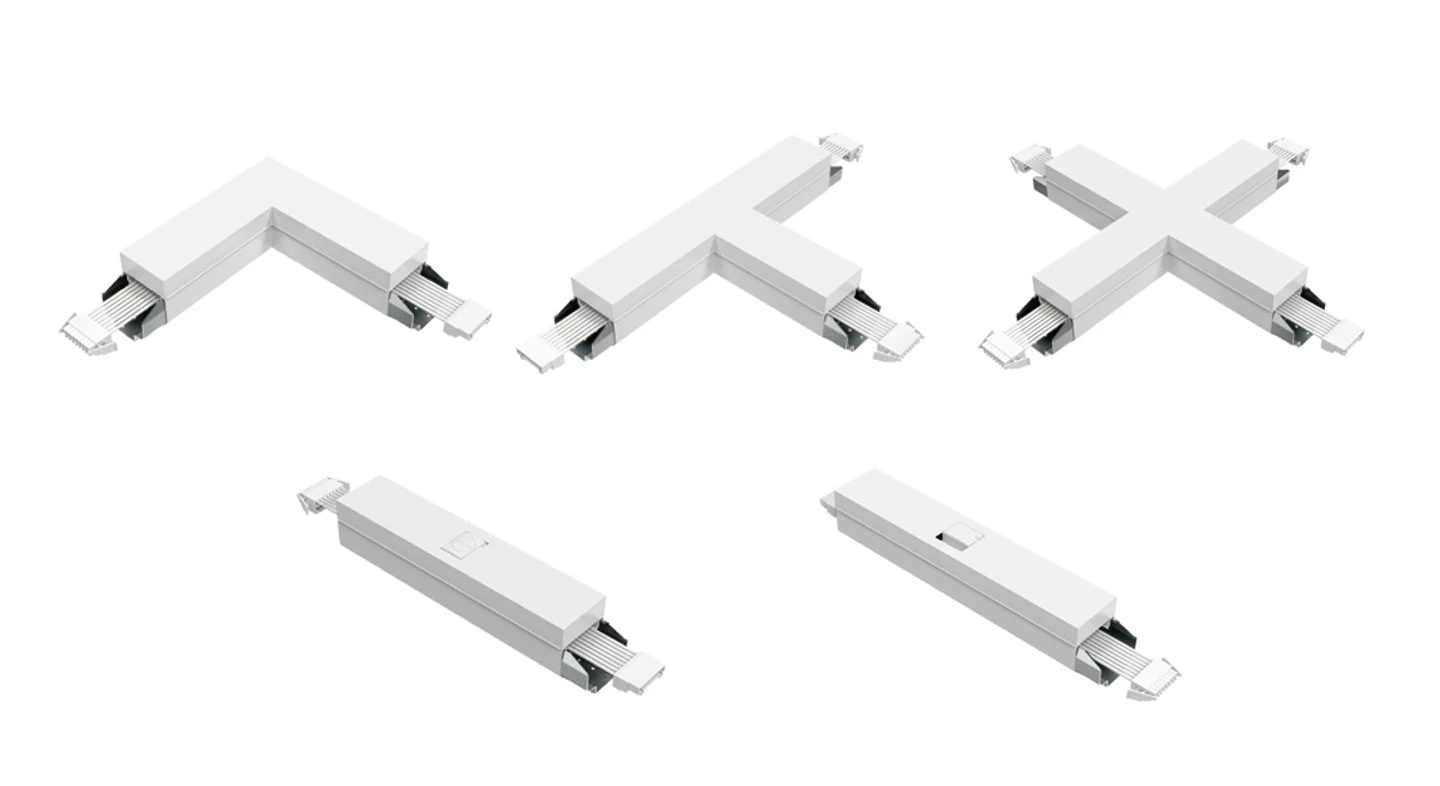

Retro Flex hadir kalawan sakumpulan kabel sambungan pra-kabel, sahingga sagemblengna bebas tina tulang tonggong pamasangan. Terminal sambungan WAGO nyadiakeun cara gancang jeung gampang pikeun nyambungkeun modul sanggeus modul. Boh versi 5-kawat on/off ogé versi dimming 7-kawat nampilkeun switch garis 3-fase dipeunteun dina 400V pikeun nyieun rupa-rupa skenario pamasangan.
Harta:

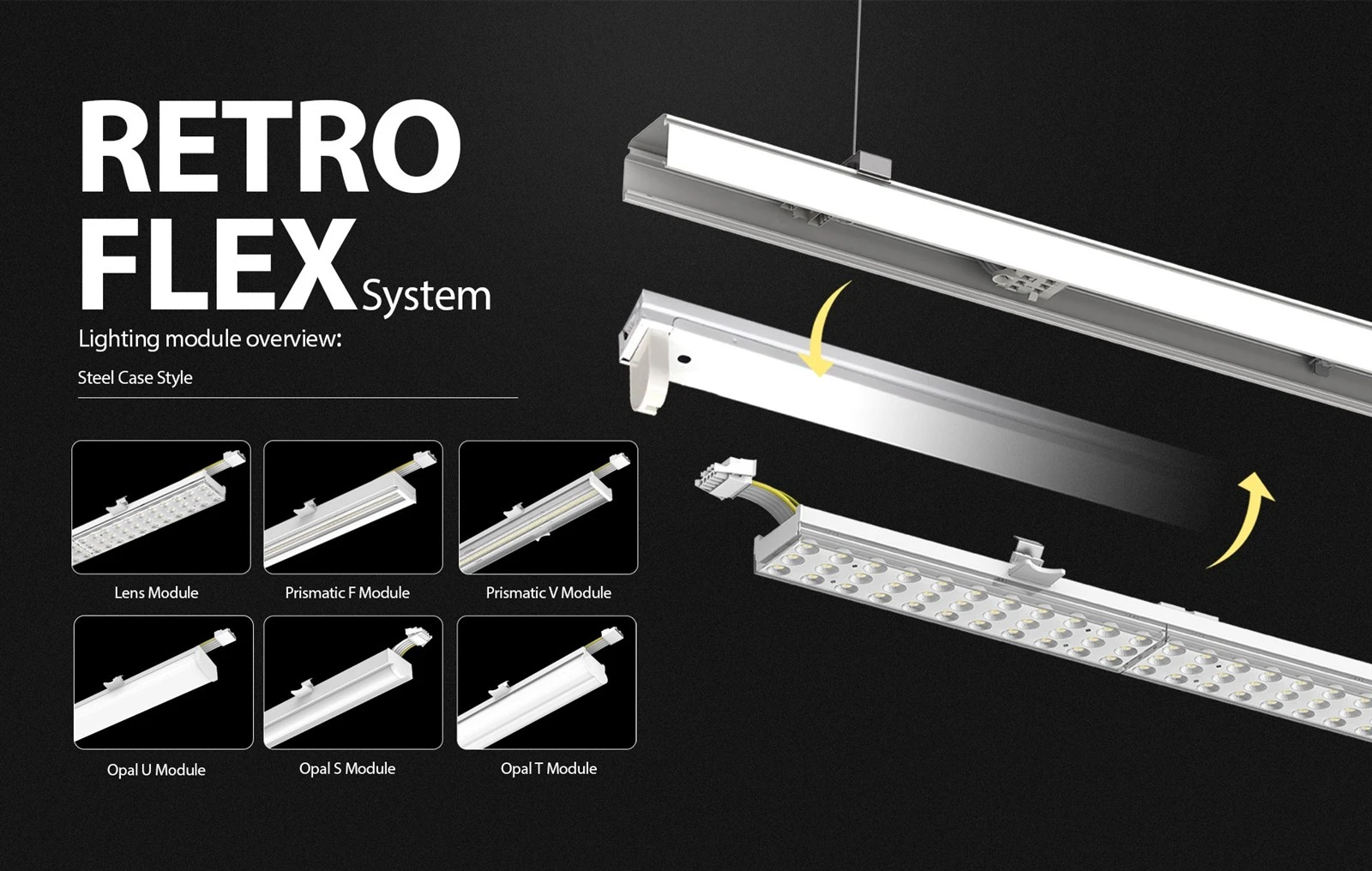

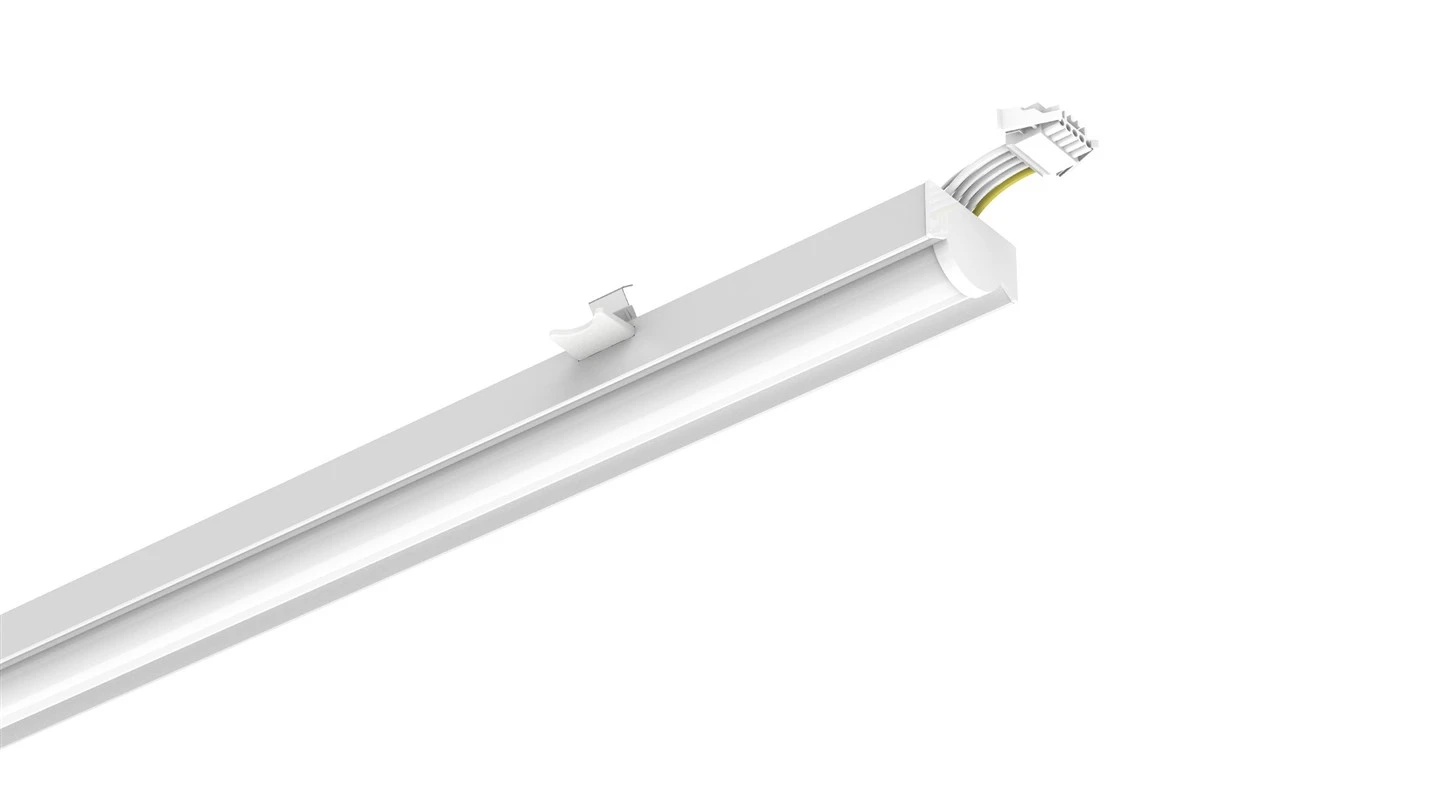

Retro Flex hadir sareng klip pinter dina modul LED anu tiasa dipasang kana kotak lampu tradisional tina merek anu béda sapertos: Philips, Trilux, Zumtobel, Siteco, Ridi sareng seueur deui. Sistim clamping fléksibel tur mandiri{1}}na ngamungkinkeun modul ieu dipasang dina rupa-rupa kotak cahaya.
Naon bédana antara lampu fluoresensi linier sareng lampu LED? Retro Flex hadir sareng set kabel sambungan pra-kabel -na nyalira, janten leres-leres bebas tina batang anu dipasangna. Terminal sambungan WAGO nyayogikeun cara anu gancang sareng gampang pikeun nyambungkeun hiji modul ka modul anu sanés.
|
Panutup |
Kode pesenan |
Dipeunteun Power |
LM/W |
Lumén |
SDCM/Ra |
Kelas IP |

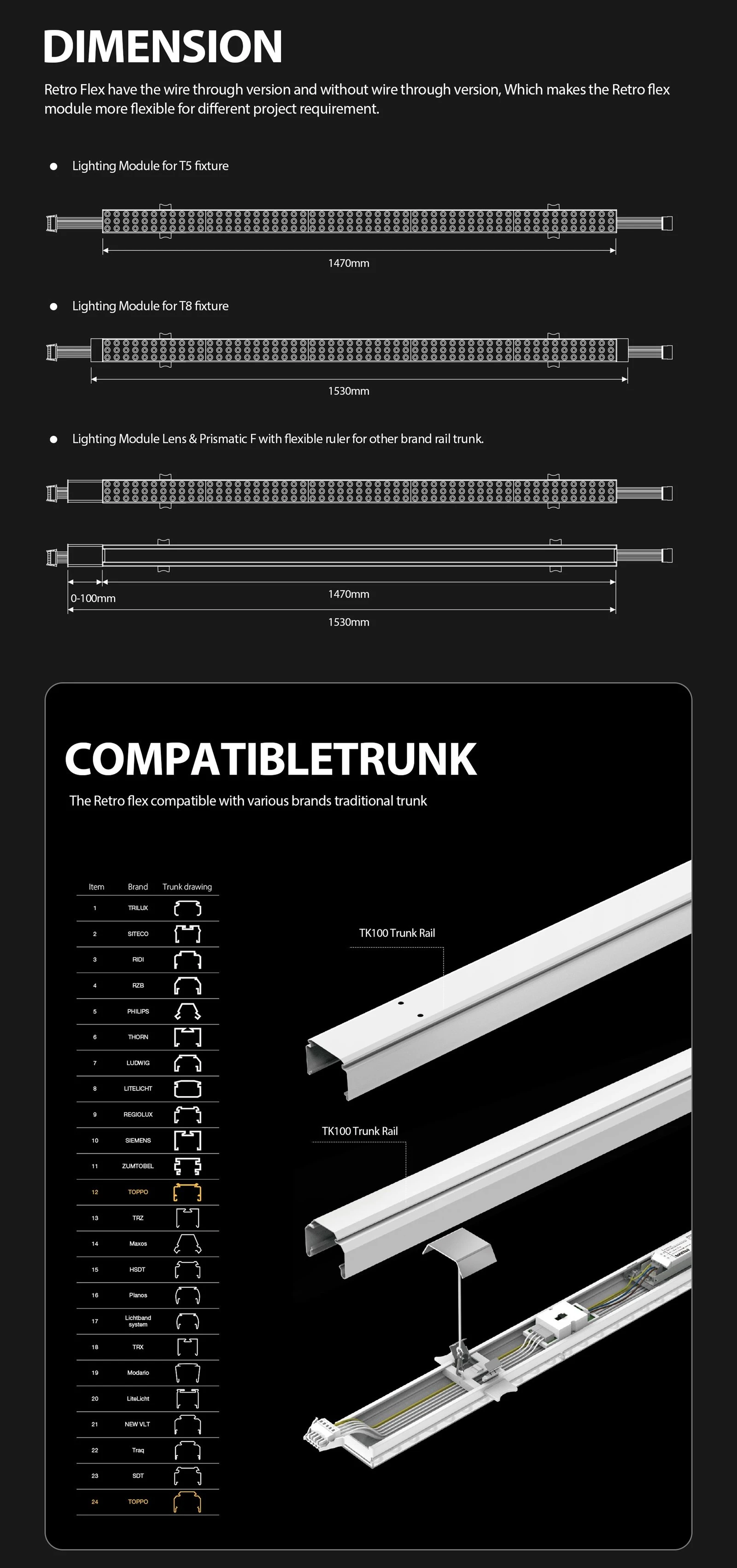

Dimensi produk |
GW/CTN |
QTY/CTN |
|

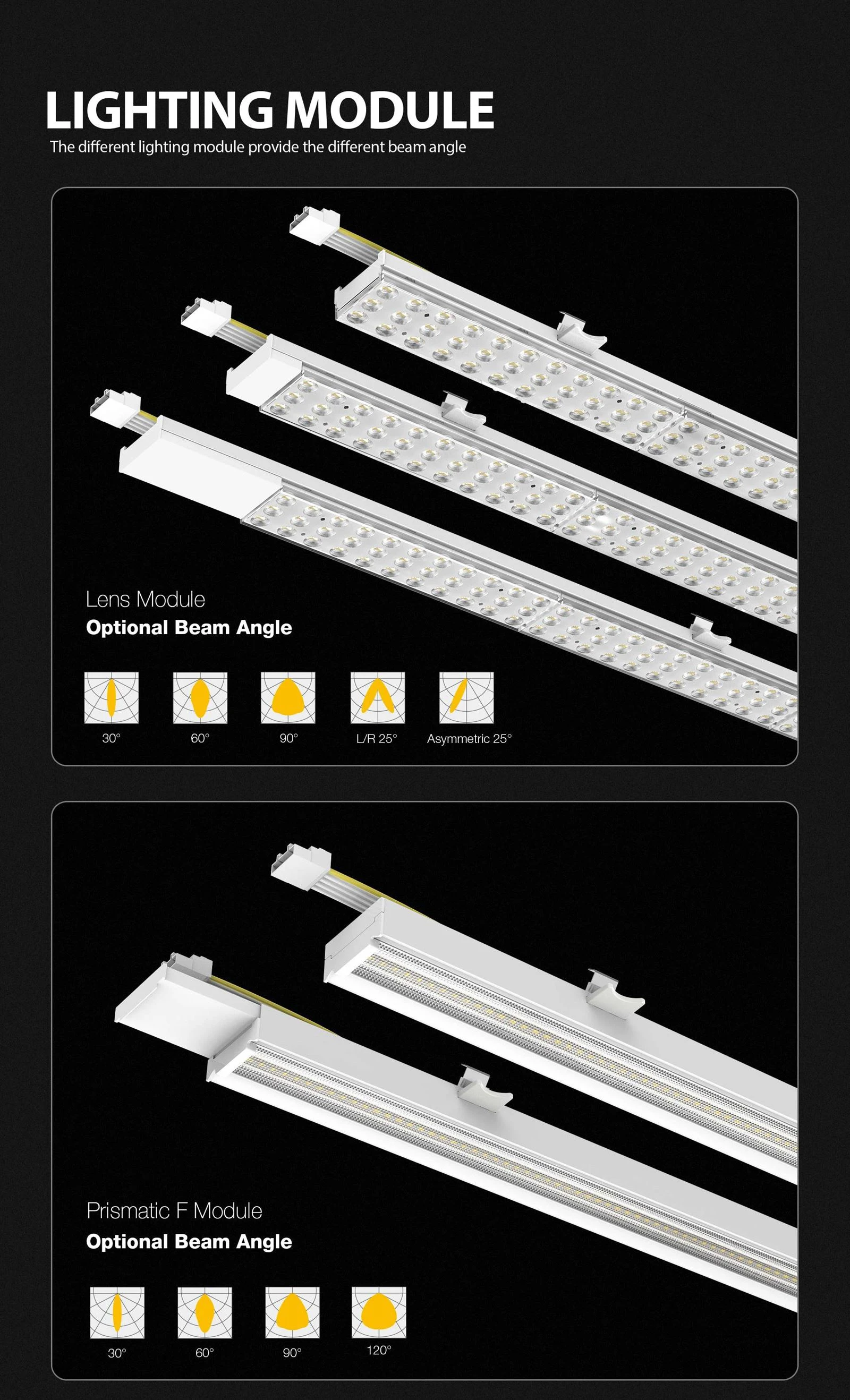

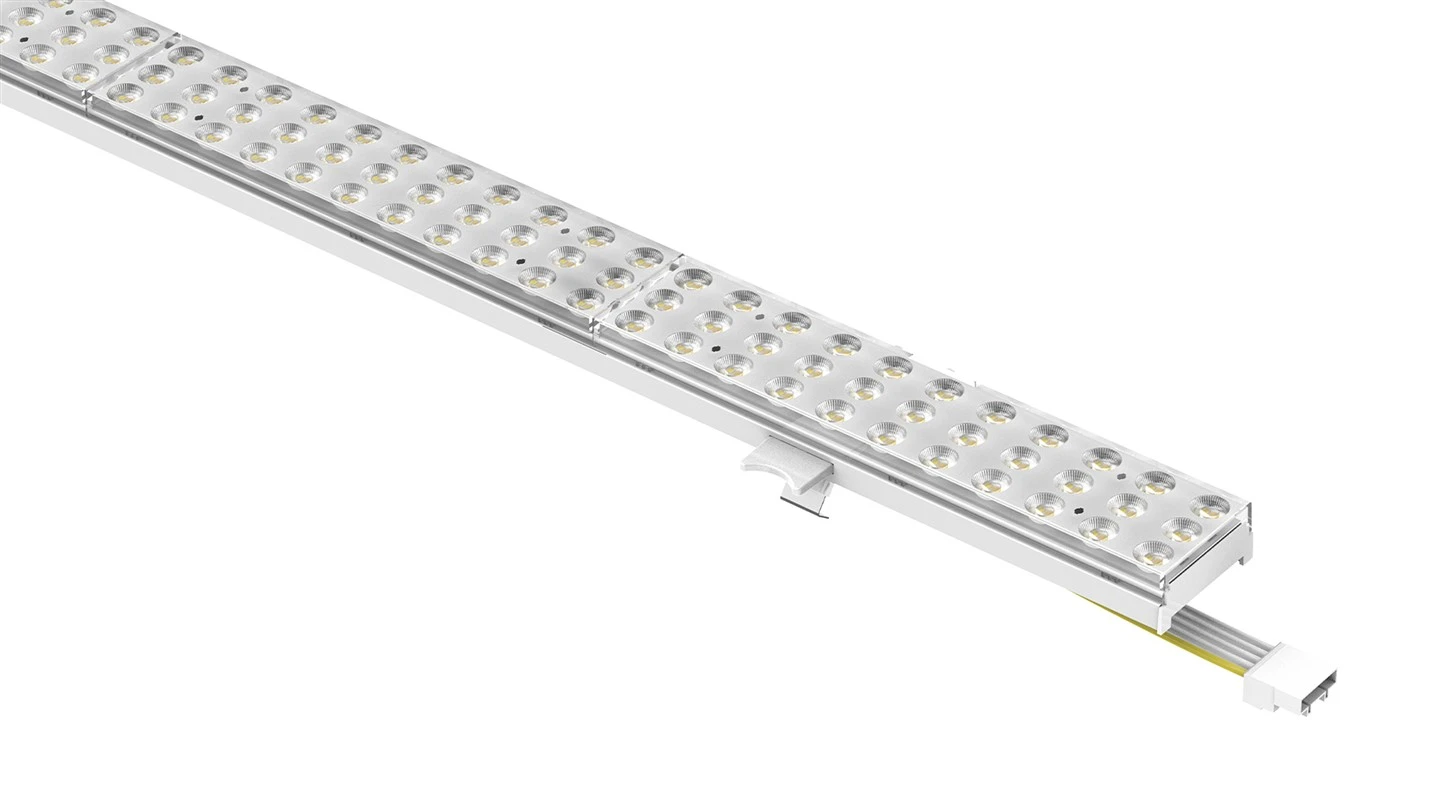

Lénsa optik |
RF100-05W-DT1-75F01 |
20-75W |
Tipe.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 leutak |
|
Lénsa optik |
RF100-05W-DT1-60F01 |
40-60W |
Tipe.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 leutak |
|
Lénsa optik |
RF100-05W-DT1-70V01 |
50-70W |
Tipe.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 leutak |
|
Lénsa optik |
RF100-05W-DT1-75D01 |
20-75W |
Tipe.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 leutak |
|
Lénsa optik |
RF100-05W-DT1-70D01 |
35-70W |
Tipe.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 leutak |
|
Lénsa optik |
RF100-05W-DT1-75F01 |
35-75W |
Tipe.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 leutak |
|

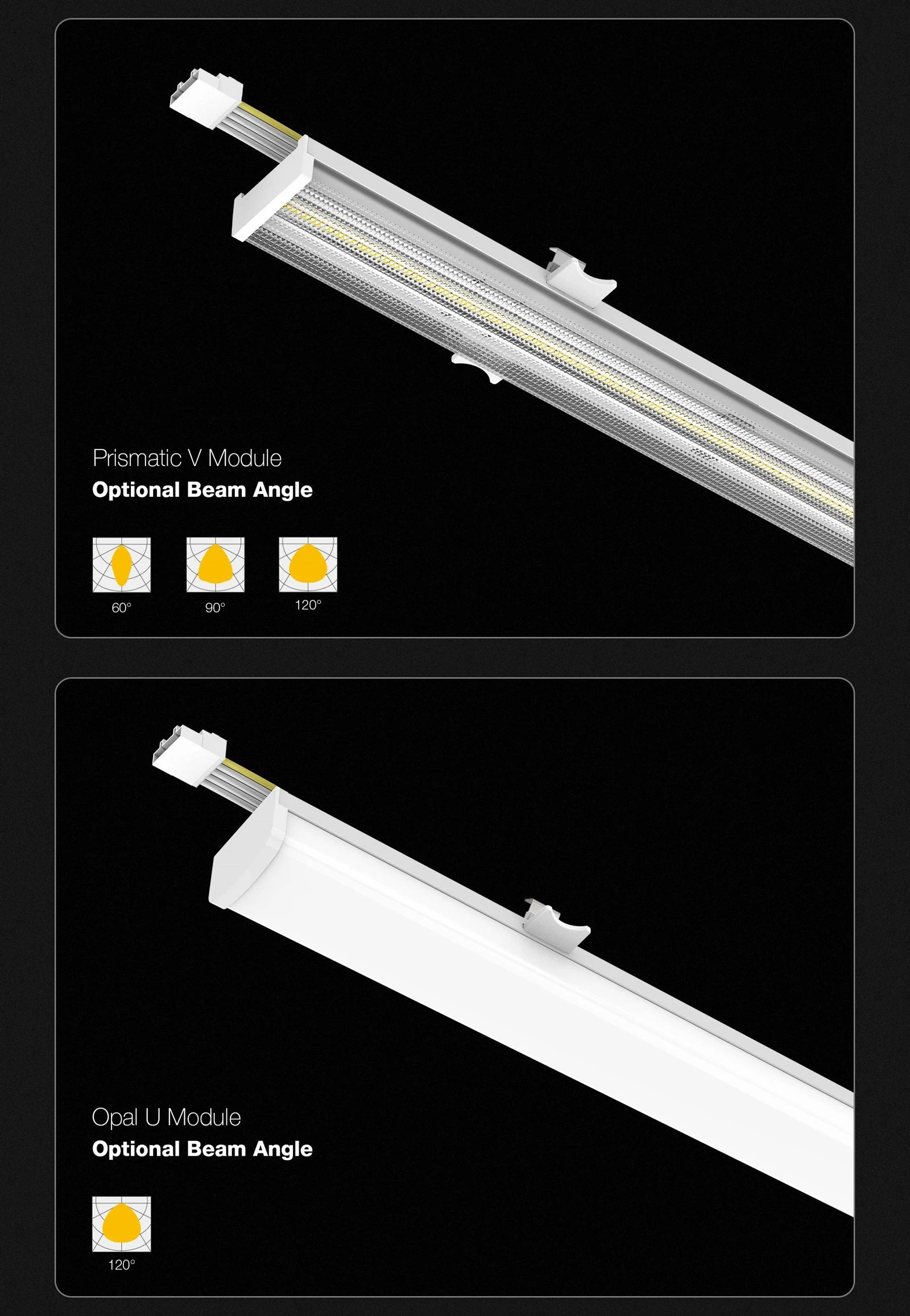

Optik prismatik F |
RF130 -05W-DT1-75F01 |
20-75W |
Tipe.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 leutak |
|
Optik prismatik F |
RF130 -05W-DT1-60F01 |
40-60W |
Tipe.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 leutak |
|
Optik prismatik F |
RF130-05W-DT1-75D01 |
20-75W |
Tipe.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 leutak |
|
Optik prismatik F |
RF130-05W-DT1-70D01 |
35-70W |
Tipe.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 leutak |
|
Optik prismatik F |
RF130 -05W-DT1-75F01 |
35-75W |
Tipe.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 leutak |
|

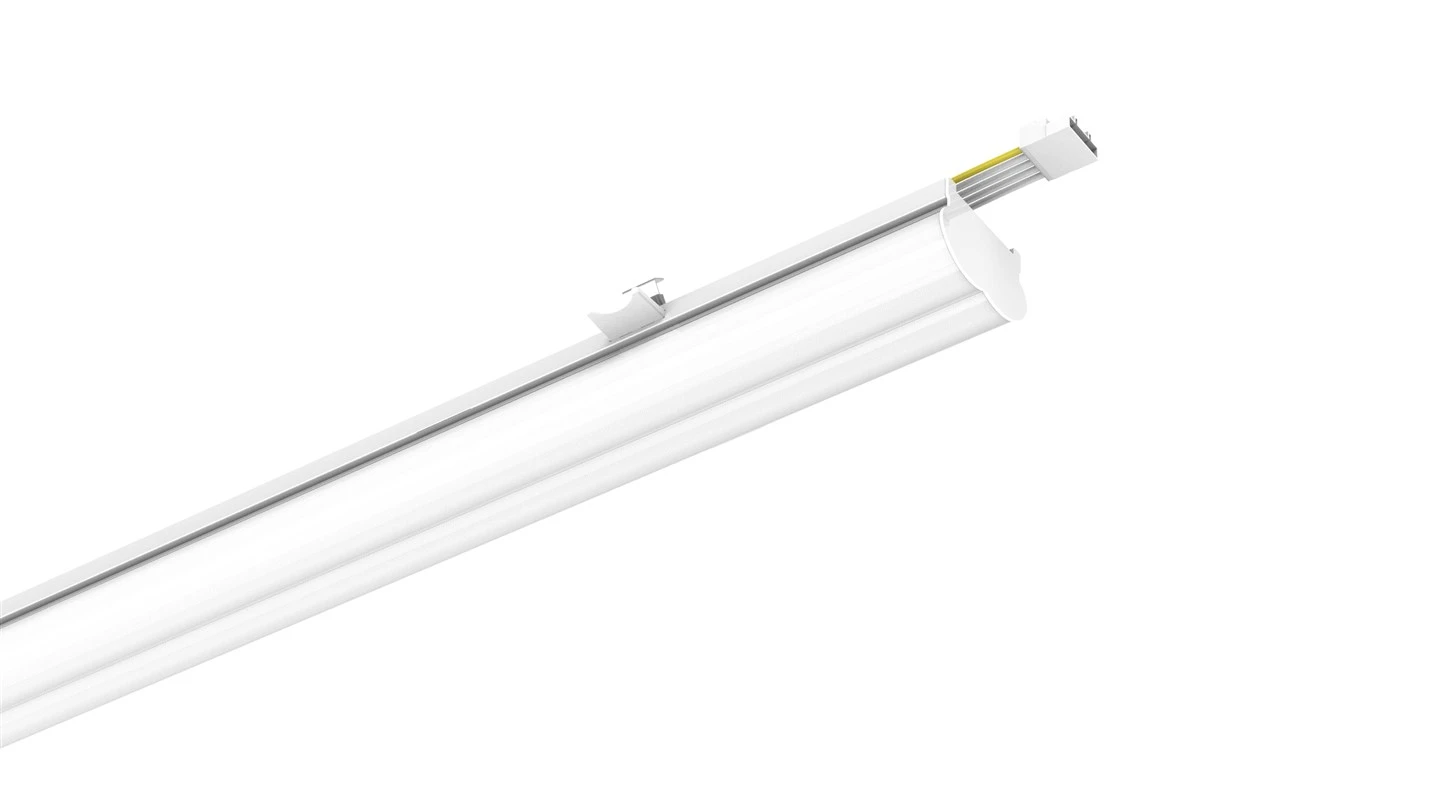

Opal T8 |
RF160-05W-DT1-75F01 |
20-75W |
Tipe.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 leutak |
|
Opal T8 |
RF160-05W-DT1-60F01 |
40-60W |
Tipe.180 |
Typ.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 leutak |
|
Opal T8 |
RF160-05W-DT1-70V01 |
50-70W |
Tipe.180 |
Typ.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 leutak |
|
Opal T8 |
RF160-05W-DT1-75D01 |
20-75W |
Tipe.180 |
Typ.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 leutak |
|
Opal T8 |
RF160-05W-DT1-70D01 |
35-70W |
Tipe.180 |
Typ.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 leutak |
|
Opal T8 |
RF160-05W-DT1-75F01 |
35-75W |
Tipe.180 |
Typ.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 leutak |
